AC to DC Power Adapters: Switch Mode Power Supplies

What Is A Switchmode Power Supply

A switchmode power supply is an electronic power supply that converts AC mains electricity to DC electricity at specific voltages. Switchmode power supplies are much more efficient than linear power supplies and are often used in devices that require a stable DC voltage, such as computers and other electronic equipment. Many switchmode power supplies also have built-in protection against short circuits and overvoltage conditions. The most common type of switchmode power supply is the flyback converter, which uses a transformer to create the DC voltage. Other types of switchmode power supplies include the forward converter, push-pull converter and also half-bridge converter.

Types Of Switchmode Power Supplies

In general, there are three types of switchmode power supplies: buck, boost, and buck-boost. Each type has its own unique set of characteristics and applications. For example, a buck power supply is typically used to step down the voltage from a higher level to a lower level, while a boost power supply is typically used to step up the voltage from a lower level to a higher level. A buck-boost power supply, on the other hand, can be used to either step down or step up the voltage, depending on the needs of the application. When choosing a switchmode power supply for a particular application, it is important to consider the advantages and disadvantages of each type in order to select the best option.

How To Choose The Best Switchmode Power Supply For Your Needs

When choosing a switchmode power supply (SMPS), there are a few things to keep in mind. First, you need to determine the power requirements of your system. This will help you to narrow down the range of options. Once you know how much power you need, you can consider the other features that are important to you. For example, some SMPS units have adjustable output voltage, while others have built-in fans for cooling. You will also need to decide on the form factor that best suits your needs. The most common form factors are desktop and rackmount. Be sure to check the warranty and support options before making your purchase. By taking all of these factors into account, you can be sure to choose the best SMPS for your needs.

When selecting a switchmode power supply, there are several important factors that must be considered in order to ensure that the correct unit is selected for the application. The first step is to determine the required output voltage and current. It is also important to consider the operating temperature range, efficiency, hold-up time, and ripple and noise performance. Other important factors include the form factor, input voltage range, cross regulation as well as load regulation. By taking all of these factors into consideration, it will be possible to select a switchmode power supply that meets the specific needs of the application.

Benefits Of Using A Switchmode Power Supply

In many electronic devices, a switchmode power supply is used to convert the AC line voltage into a DC voltage. The main advantage of using a switchmode power supply is that it is much more efficient than a linear power supply. In a linear power supply, the AC line voltage is converted into DC by passing it through a rectifier and filter. This process generates a lot of heat, which must be dissipated by the power supply. In contrast, a switchmode power supply uses transistors to rapidly switch the AC line voltage on and off. This produces a DC voltage without generating any significant amount of heat. As a result, switchmode power supplies are smaller, lighter and more efficient than linear power supplies.

Where To Find Switchmode Power Supplies

Campad Electronics is the leading supplier of switchmode power supplies. We have a wide variety of products to choose from, and our knowledgeable staff can help you find the right product for your needs. We offer a wide range of products, from small to large, and we have a product for every application. Campad Electronics is the only place to go for switchmode power supplies. We have the largest selection in the world, and we can provide you with the best prices and service. Campad Electronics is your one-stop shop for all your switchmode power needs. Thanks for choosing Campad Electronics!

A switchmode power supply provides many benefits and can be tailored to specific needs. When choosing a unit, consider the required voltage and current, input and output voltages, operating temperature, regulatory requirements, size, weight and cost. Once you have considered all of these factors contact Campad Electronics, we have a wide selection of switchmode power supplies that will suit your every need.

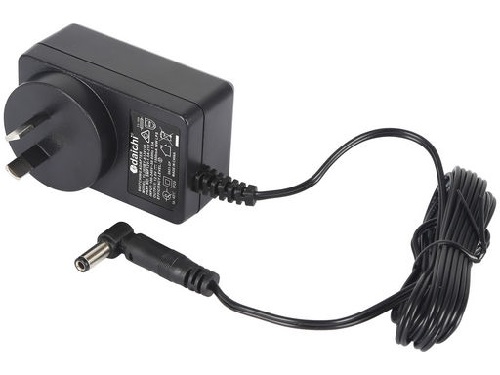

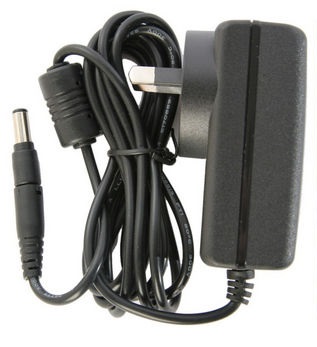

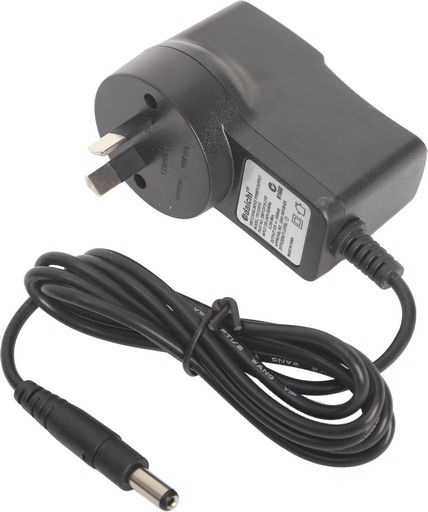

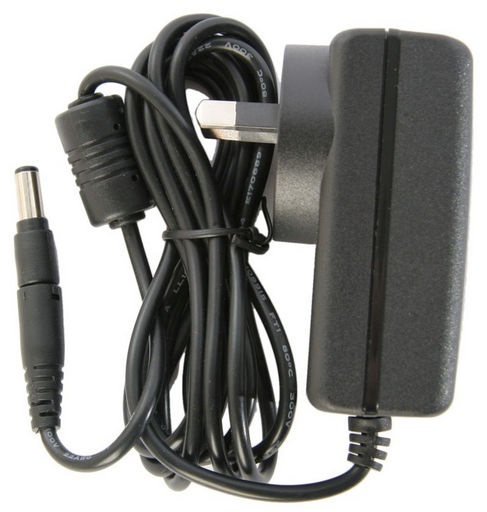

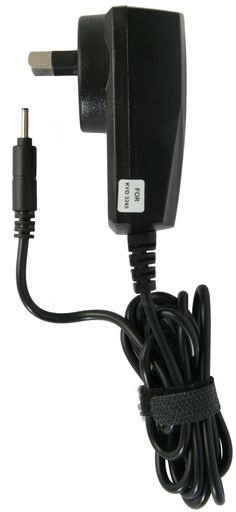

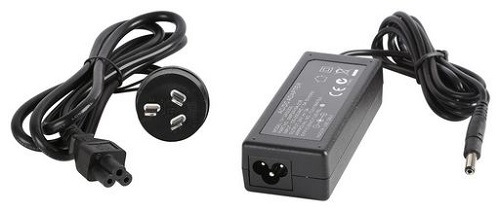

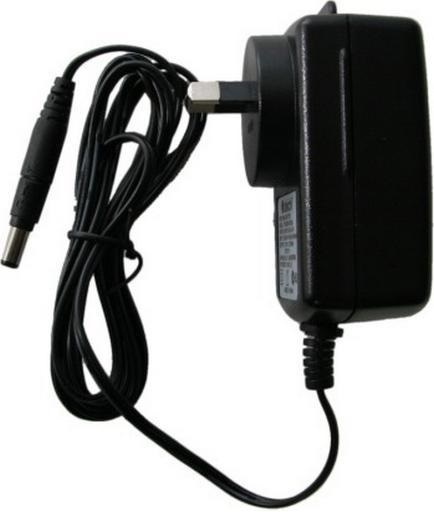

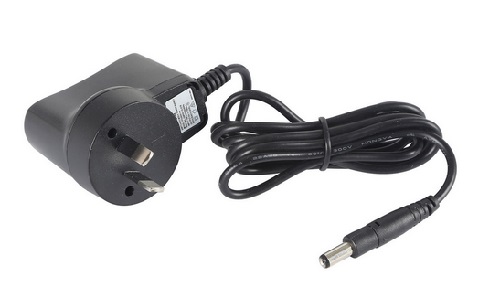

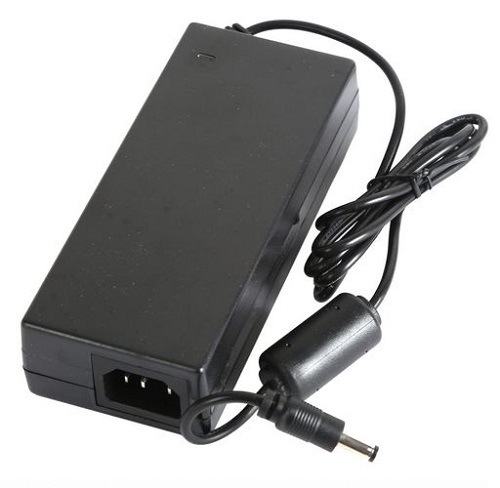

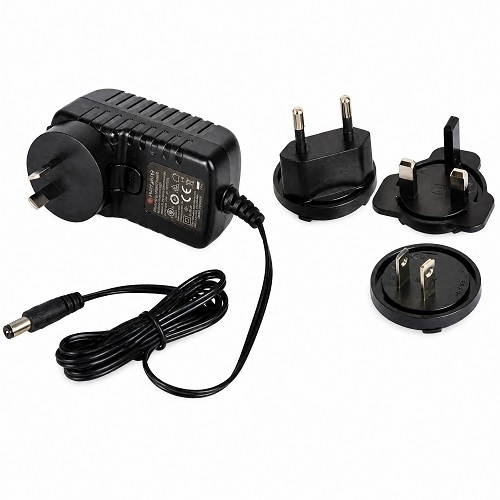

Switch-Mode Power Supplies in AC/DC Adapters

AC/DC Adapters

An AC-to-DC adapter's primary function is to convert alternating current (AC) from a power outlet into direct current (DC) that electronic devices can use.

What is a Switch-Mode Power Supply

A Switch-Mode Power Supply (SMPS) is a type of power supply that uses a switching regulator to efficiently convert electrical power.

Operation of SMPS in AC-DC Adapters

In an SMPS, a high-frequency switching element (like a transistor) is used to rapidly turn the DC voltage on and off, creating a high-frequency AC signal. This signal is then passed through a transformer (which can be smaller than in a linear supply due to the higher frequency) and rectified back to DC before being filtered to produce the desired output voltage.

Characteristics of SMPS

SMPS are known for their high efficiency, meaning they waste less energy as heat, and their smaller size compared to linear power supplies, especially for higher power applications. This makes them the ideal AC DC adapter for compact devices like laptop chargers and phone chargers.

Applications of AC/DC Adapters

AC/DC adapters are commonly found in various electronic devices such as laptops, smartphones and other appliances.
